Japanese-made ultra-high speed Compact 3D printer
Max speed
500 mm /s
Max acceleration
20,000 mm /s²
Contact / Quote
01
A manufacturing plant that sits right on your desk.

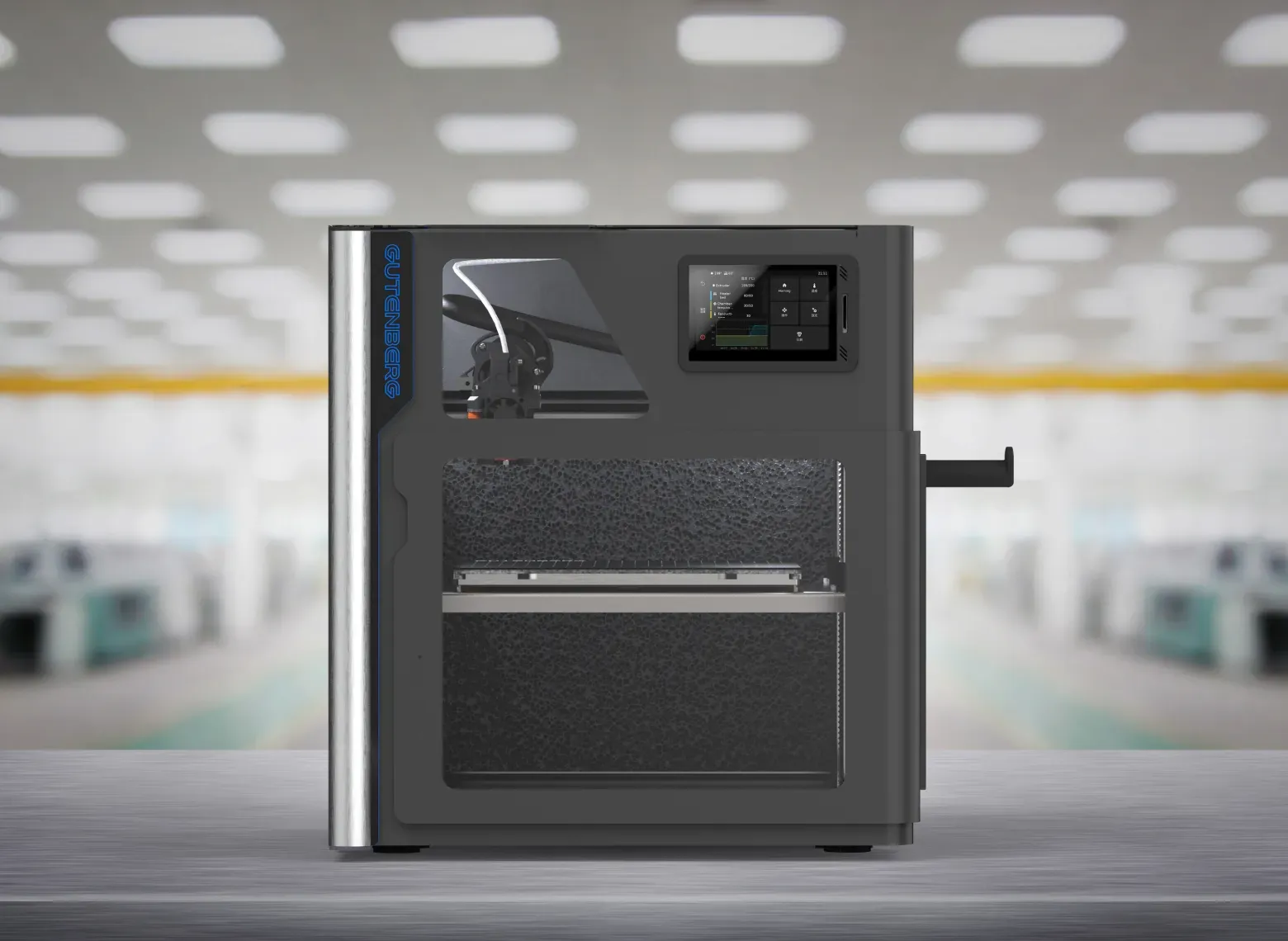

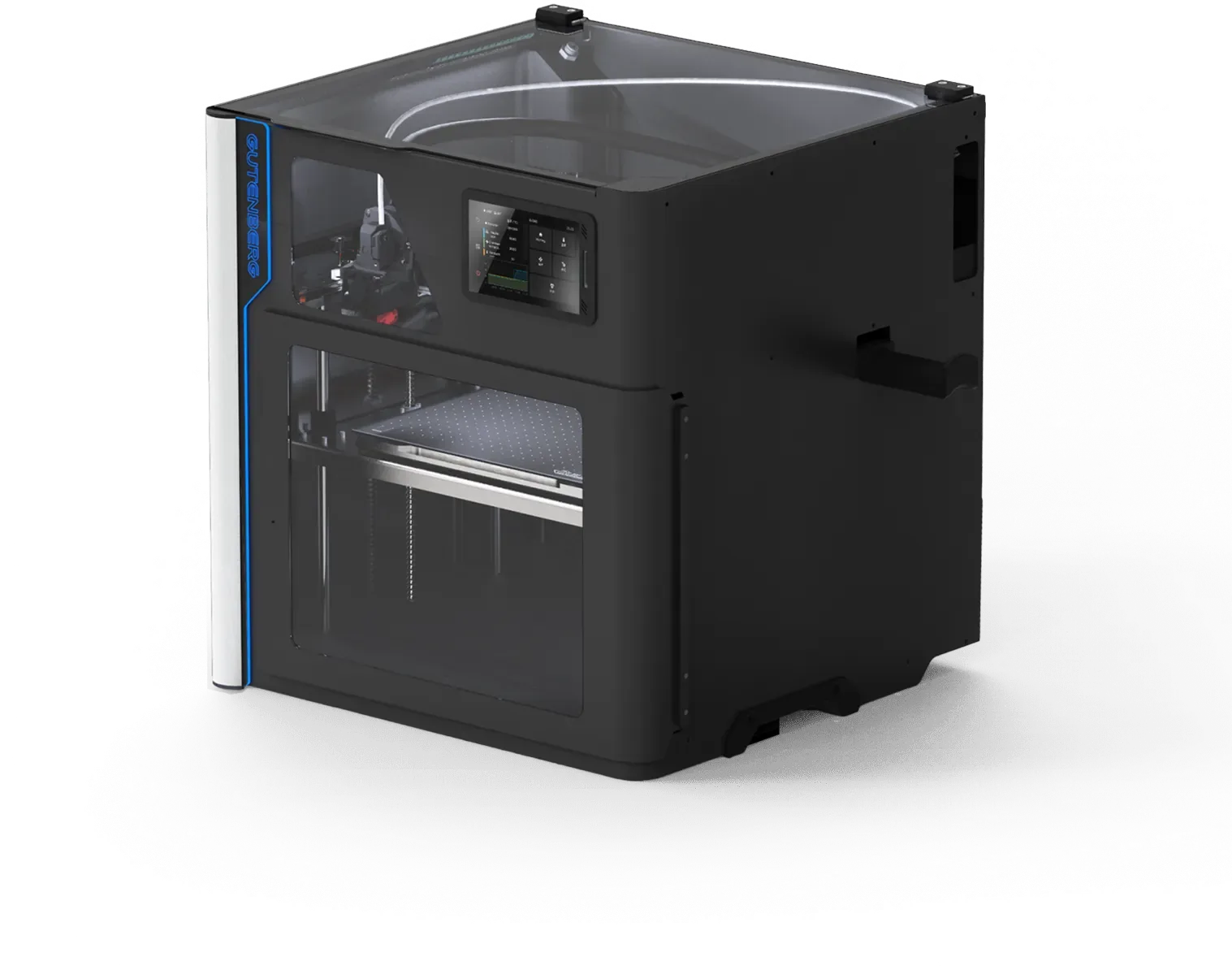

The G-ZERO is a compact 440 x 415 x 470 mm machine that can output engineering plastics (PPS, PA) and installs equally easily in the office or on a factory line. Add fixture and small-part manufacturing capabilities to your workplace to lower operational costs and improve efficiency.
02
Robust body

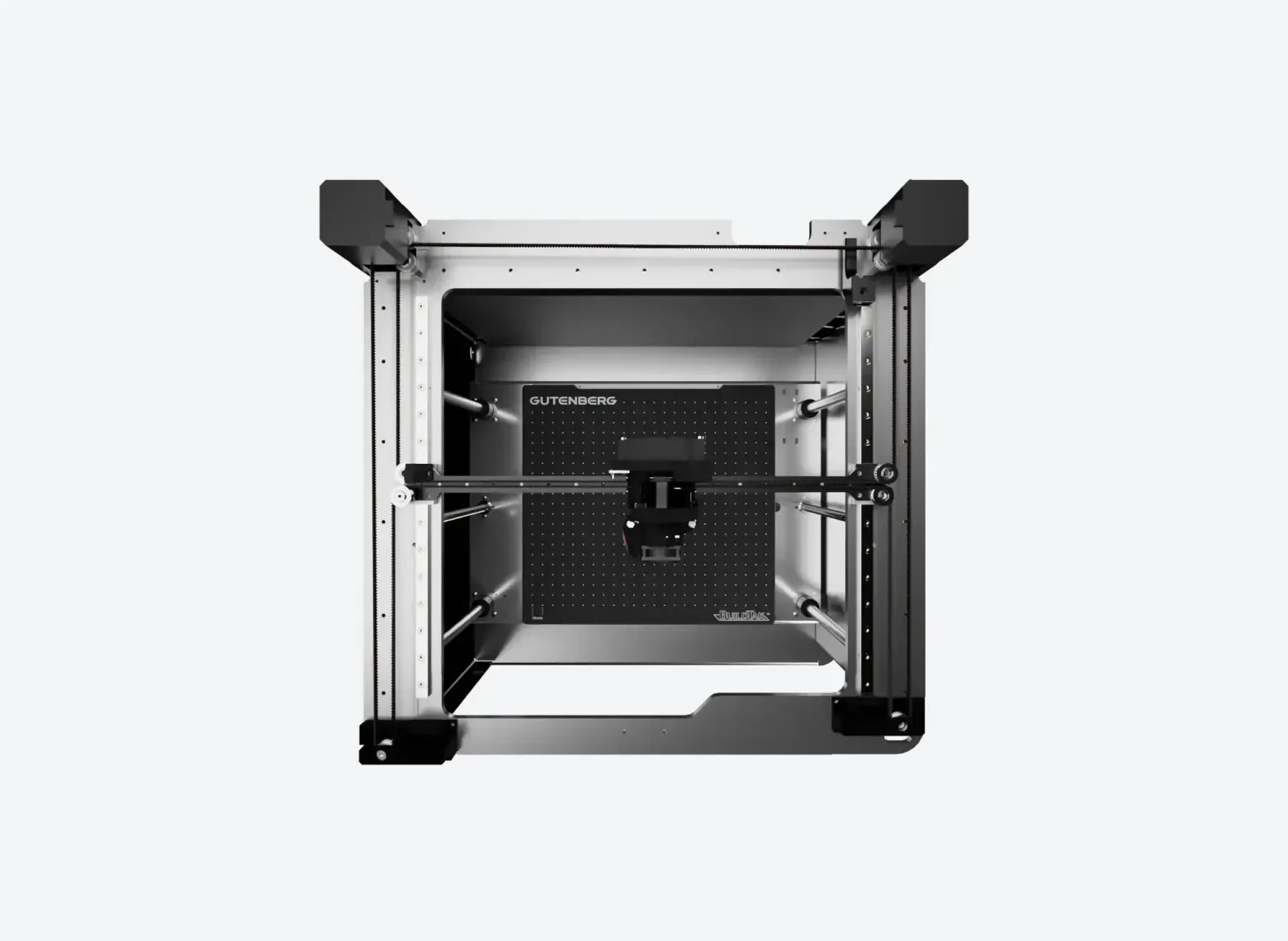

The highly rigid frame made with the metal processing technology of a local factory can maintain its high modeling accuracy without distortion even after repeated high-speed modeling.
03

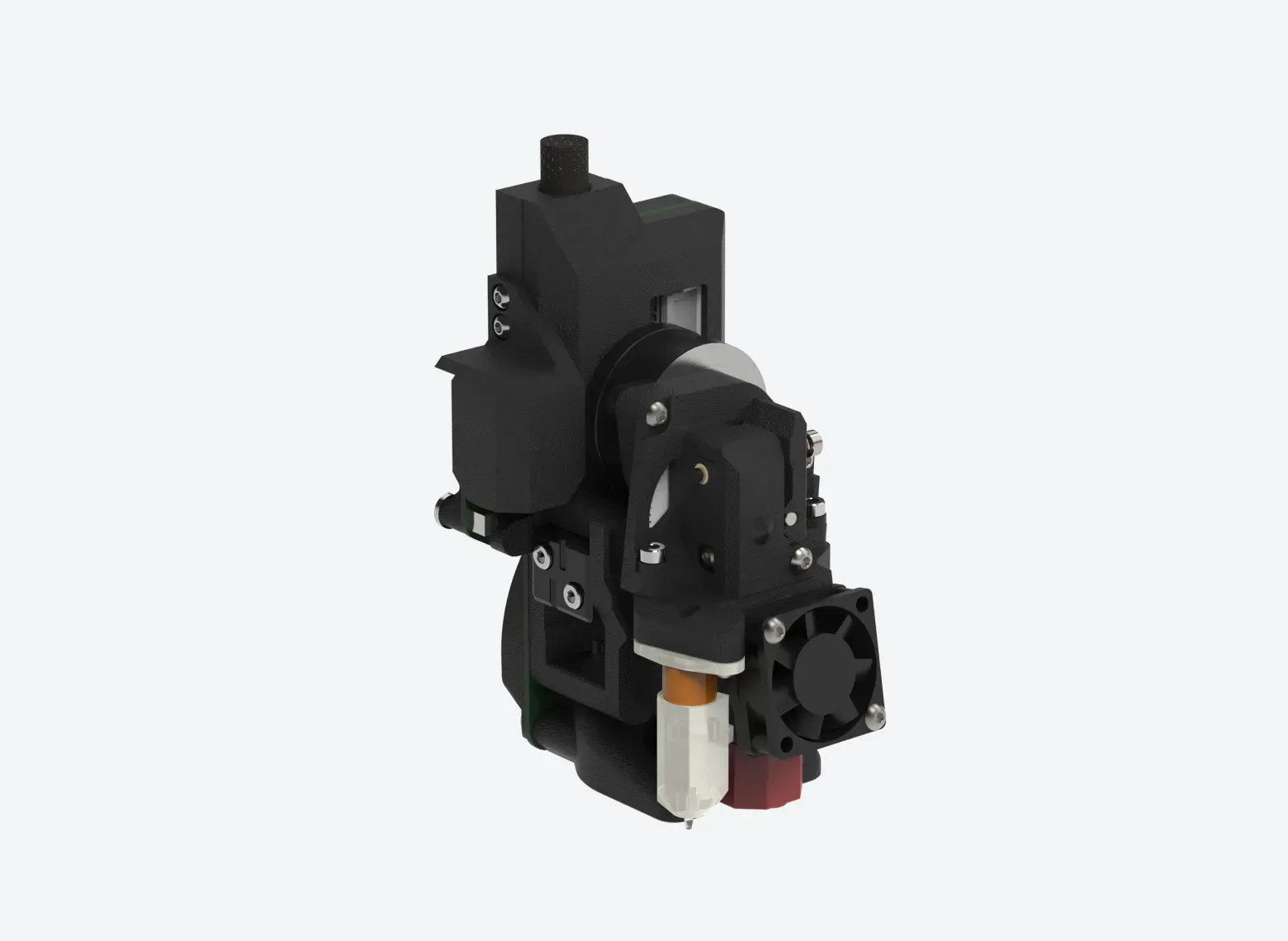

Lightweight tool head

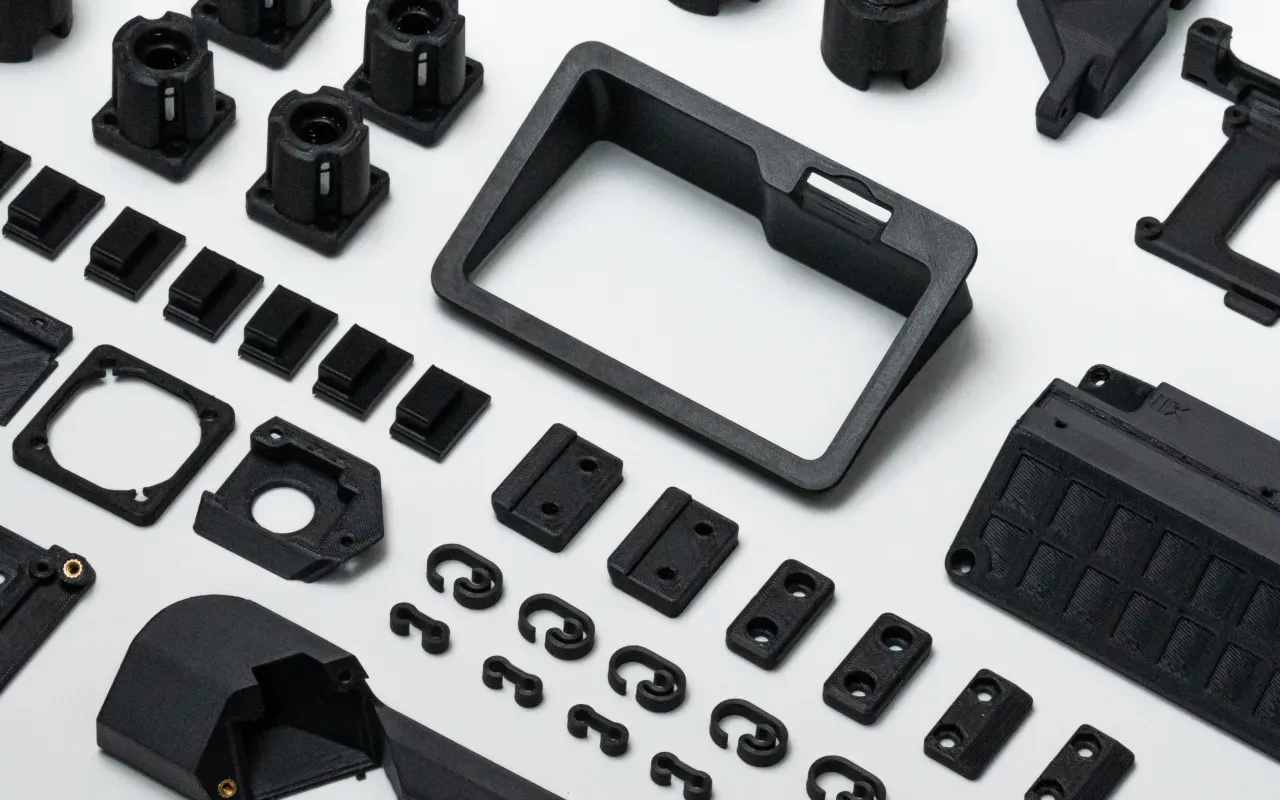

The lightweight tool head reduces the load on the frame and enables precise drawing with less blurring. It is made of resin parts printed by G-ZERO itself to reduce weight; demonstrating the product's molding quality, dimensional accuracy, and durability.
04
Automatic bed leveling

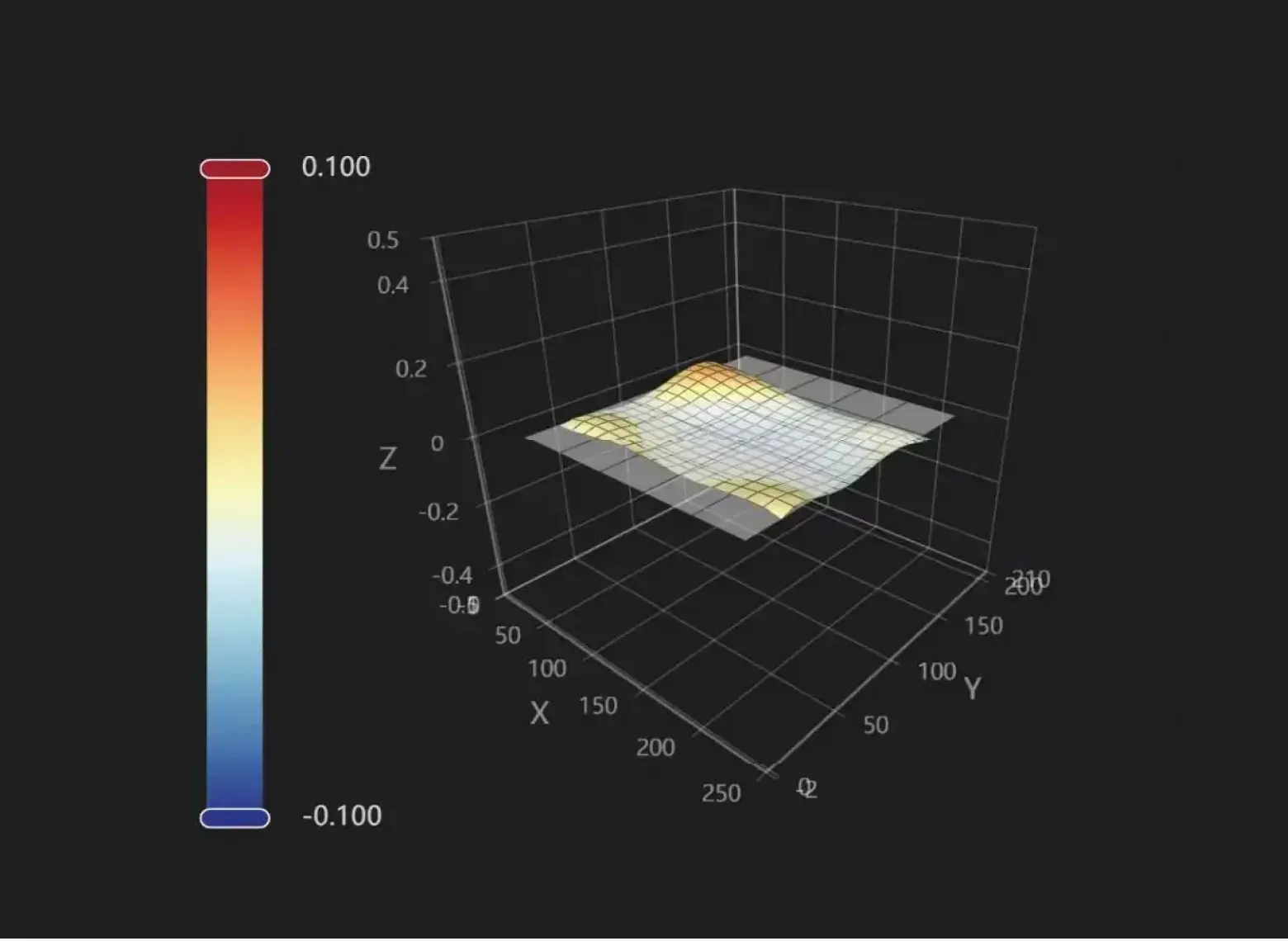

The G-ZERO automatically performs precise bed leveling at the start of production.
05
Designed and manufactured in Japan
We design and manufacture at our factory in Kamata, Tokyo, Japan. At Gutenberg, we efficiently incorporate customer feedback into our designs and deliver products of Japanese quality. In the event of an issue, we respond quickly so that our customers' production operations are unaffected. (Japan only)
The combination of a robust body, lightweight tool head, vibration-dampening technology, and automatic bed leveling allows the G-ZERO to produce high-precision parts quickly.

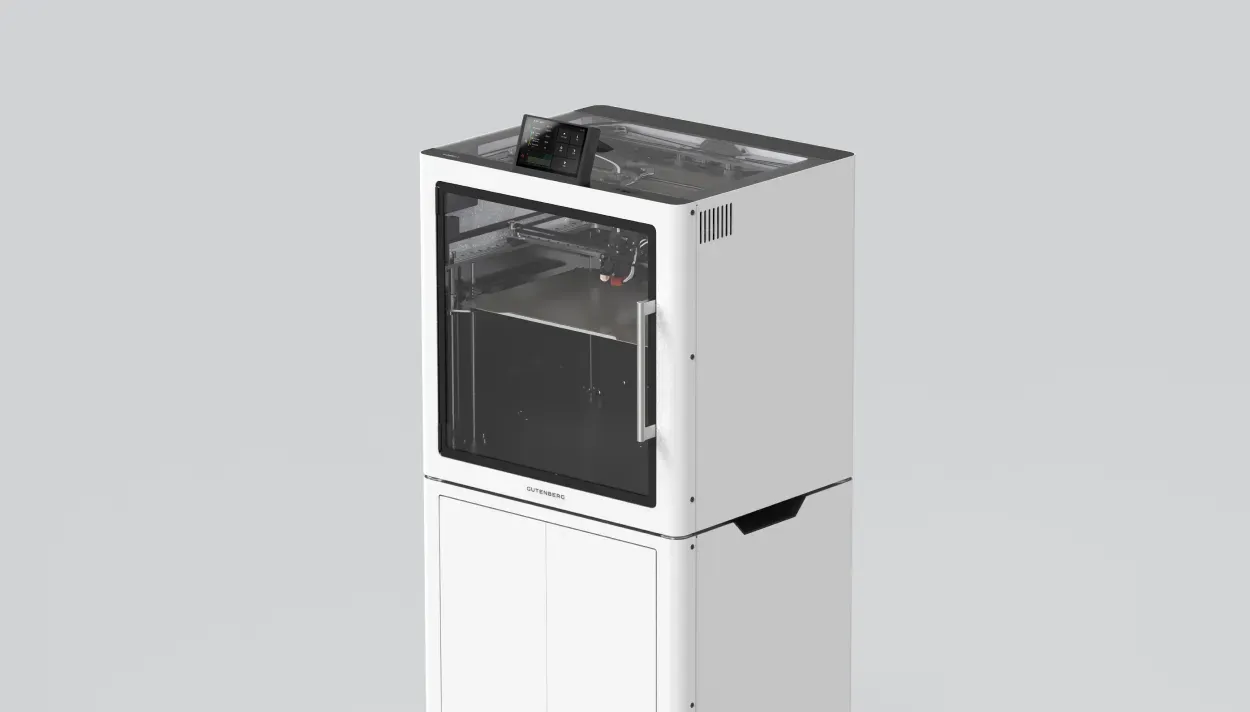

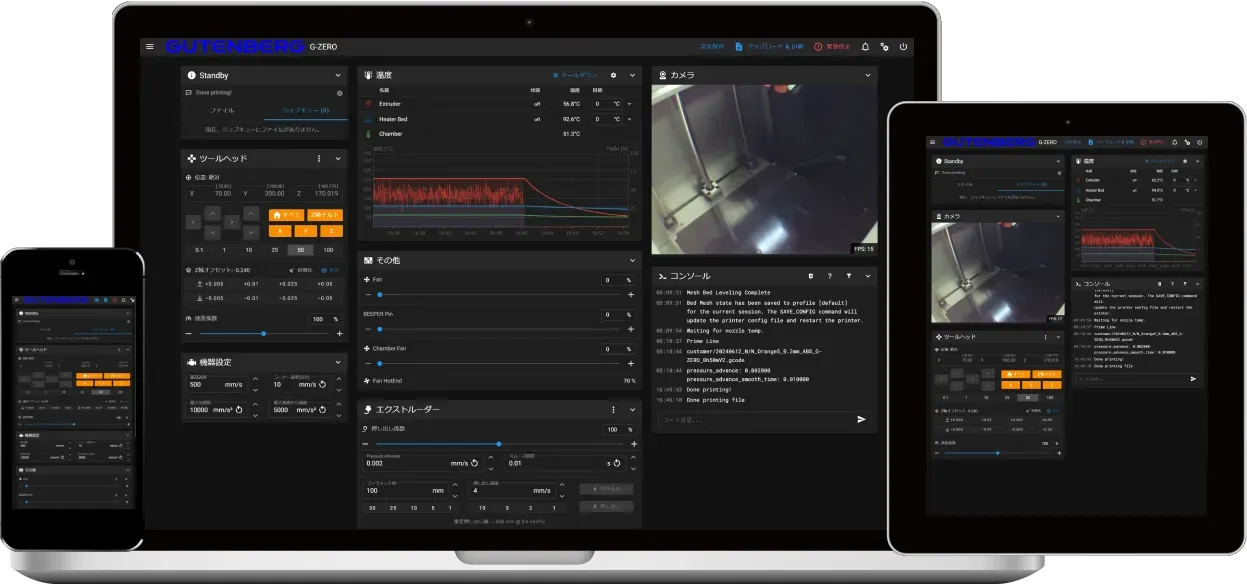

G-ZERO L1 / G-ZERO is operational not only from the main unit but also from a PC or tablet in the same LAN via a browser. You can monitor the temperature, speed, and video images during the creation process, so you don't have to stay in front of your 3D printer and wonder whether it is working correctly or not.

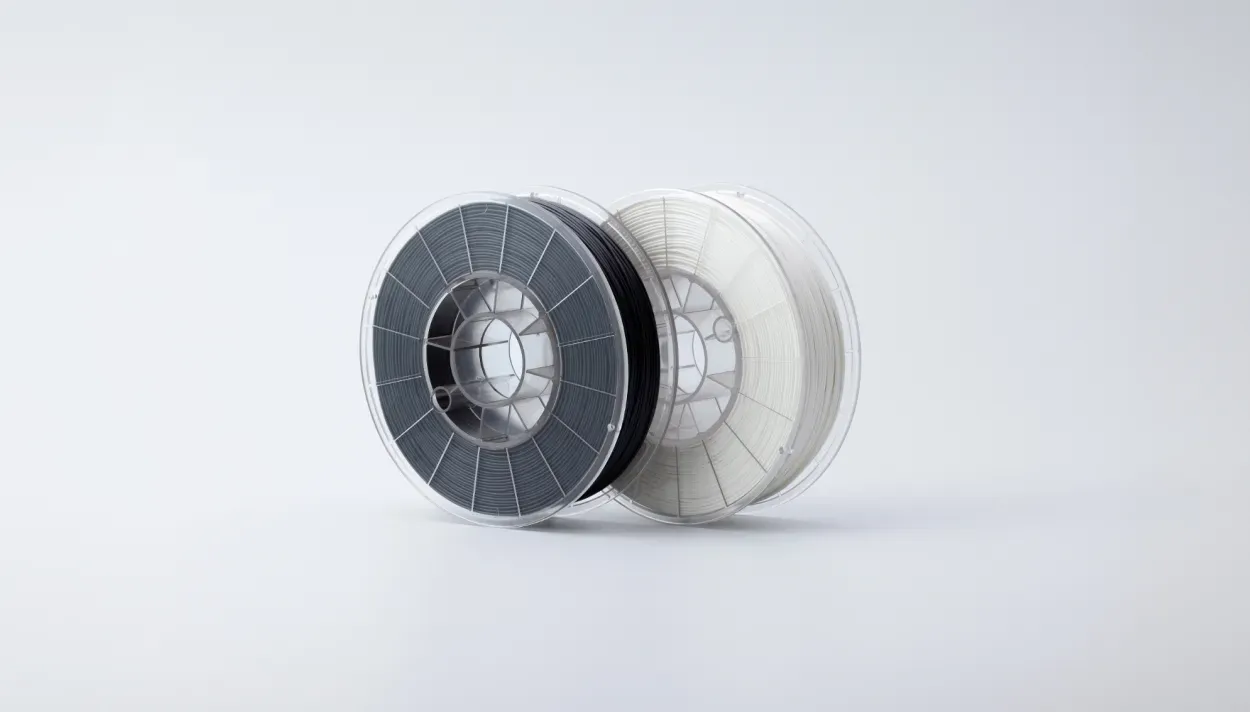

POTICON ESD PPS semiconductor transfer trays take advantage of antistatic performance from combining Polyphenylene Sulfide (PPS) with ultra-fine potassium titanate fibers (TISMO), designed for applications requiring high durability and dimensional stability. The tray shape, which is prone to warping, is flat with high dimensional accuracy.
A model for mechanism study using PLA filament, G-ZERO is also suitable for rapid prototyping of movable parts because of its fast and accurate modeling capability even with general-purpose materials.

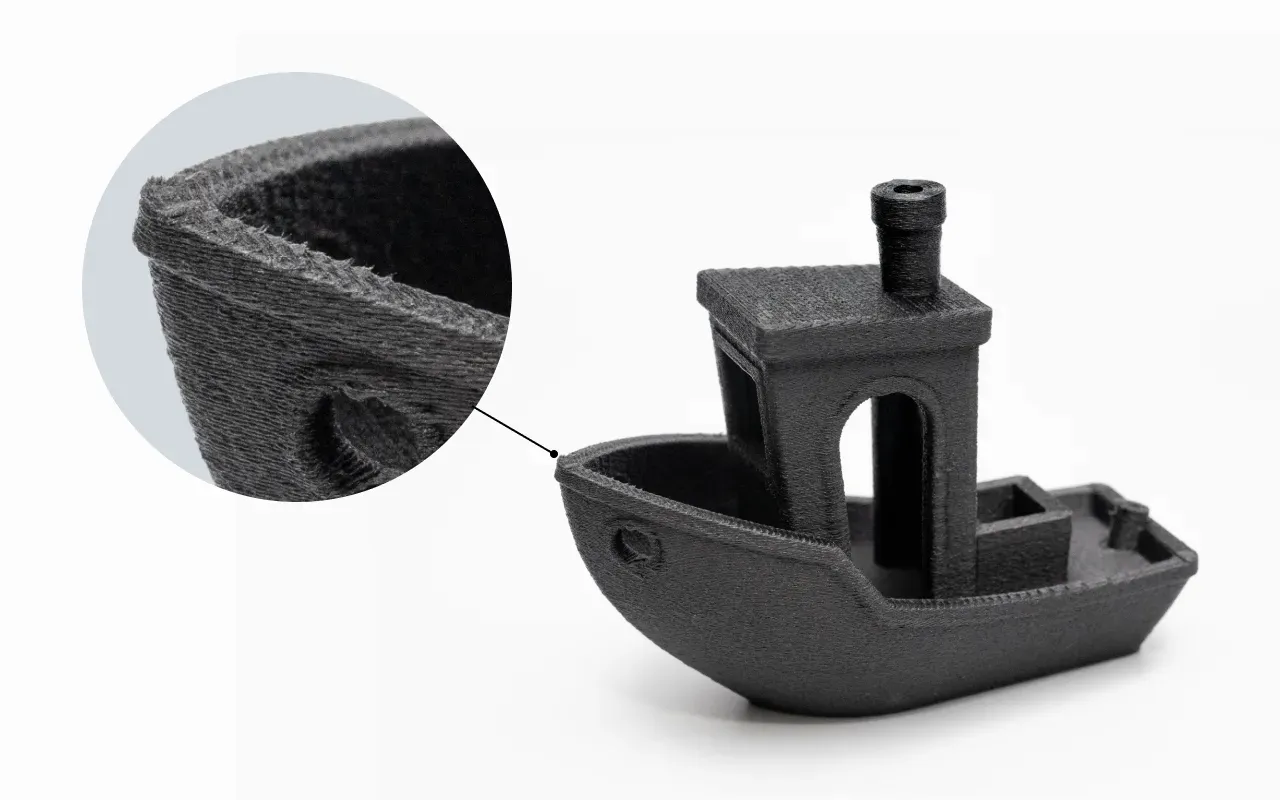

The output is tough and accurate, with excellent dimensional accuracy, even for small shapes. This makes it possible to produce original gears that are not available on the shelf.
Even delicate shapes such as glasses can be output with high accuracy. Compared to light modeling, it does not use solvents and is safer, making it suitable for in-office modeling studies.
High-quality jigs and fixtures that increase production efficiency are quickly produced. This jig was produced in 6 minutes.
The vanishing model, which is generally made with a mold, is replaced by a resin modeling material output by G-ZERO. Mold making costs are reduced, and strength and ease of handling are also improved.
Printed by G-ZERO itself using resin containing carbon fiber. The high dimensional accuracy achieves a mating accuracy that allows it to be used as a mass-produced part.
POTICON FLEX PA12 is used to create impact-resistant drone frames. The frame structure, which is difficult to shape and has many openings and is thin, is output with a high degree of accuracy. 3Dmodel provider : AeroEngineer Title : Optimal Quadrotor Frame 3D print model Source : CGTrader.com
About
Product name
G-ZERO
Type
FFF type 3D printer
Country of origin
Japan
Size/Weight
Dimensions of main unit
440 × 410 × 470mm ※without option parts
Weight of the main unit
26kg
Print spec
Print area
250 × 210 × 200mm
Number of nozzles
1
Diameter of nozzle
0.2/0.4mm
Max nozzle temp
350°C
Max bed temp
120°C
Max chamber temp
60°C
Support filament
PPS(RT4, RT4E) PA(NTL34M, NTL36) PLA, ABS, PC, ASA, PA, TPU
Layer height
0.05mm~0.2mm ※in case of 0.4mm nozzle setting
Max printhead travel speed
500mm/s
Max printhead acceleration
20,000mm/s²
Build plate
Smooth/Texture (magnetic fit)
Bed leveling
3-axis independent control and bed mesh compensation
Kinematics
Core XY
Power supply
Rated voltage
AC100V
Rated frequency
50/60Hz
Max power consumption in temperature rising(before printing)
500W
Product interface
Display
4.3" touch display
Wireless connectivity
Wi-Fi (2.4 and 5 GHz)
Local connectivity
Ethernet
Camera
Yes
Supported storage media
SD-card
Supported slicer
PrusaSlicer
WEB UI
Mainsail
